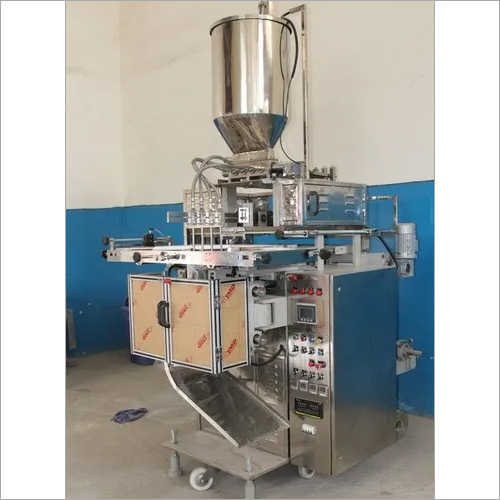

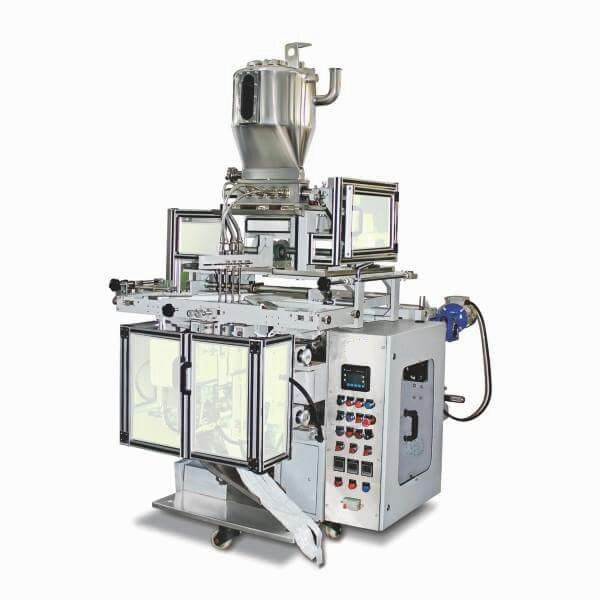

MT 600 மல்டிட்ராக் மெஷின்

Applicative Film (Pouch Material

Heat Sealable Laminated Film

Attachments

A) Batch Cutter - Max. Upto 99, B) Collating System, C) Hot Foil Stamping / Embossing, D) Notching

Compressed Air

Consumption 12 CFM and Pressure 6 BAR

Electrical Power Consumption

5-10kw (Max) (The Power Consumption Increases With Optional Attachments

Filling System

Volumetric Piston Dosing Filling System

Frequency

50 Hz

Machine Type

Automatic Multi Track Form Fill & Seal

Max. Diameter Of Roll

600 mm

Net Weight

1200 Kg

No. Of Tracks

3-6 Tracks (Max.) (Depending Upon The Width Of The Pouch

Phase

Three Phase

Prime Movers

2.00 H.p/ 230v/ac/single Ph./50hz

Speed

Upto 80 Pouches / Min. / Track

Thermostat

PID (Proportional Integral Derivative) temperature Controller with upper and lower limit control.

Country of Origin

Made in India

I Deal In

New Only

Accuracy

+/-2%

Max Roll Width

600 mm

Machine Dimension

L: 2000 mm., W: 1150 mm., H: 1800 mm.

Pouch Style

4 side Seal sachets

Filler Type

Piston Filler

Automation Grade

Semi-Automatic

Model Name/Number

MT- 600-L

Brand

MT-600 (6 Track) high Speed Liquid Machine

Capacity

4000 Pouch/Hour
